Studio 7B
Names
Open questions.md and list the names of everyone in your group.
Studio 7A
If you didn’t complete the implementation of xor last week (Studio 7A), complete it first. (Just the testbench part)
Micro Architectures & Execution
Consider the following segment of code for the next several parts:
mv t0, a0 # t0 = start
add t1, a1, a1 # t1 = 2x a1
add t1, t1, t1 # t1 = 4x a1 (sll a1, a1, 2 would also work)
add t1, a0, t1 # t1 = end (inclusive)
mv a2, zero # Init sum
loop:
lw t2, 0(t0)
add a2, a2, t2
addi t0, t0, 4 # Move to next
blt t0, t1, loop
Pseudo-Instructions
Recall that there are many “pseudo-instructions” that have a mnemonic that represents what is desired, like mv, but that are not a real, distinct instruction. They are translated by the assembler to a real instruction.
See Appendix B, Page 4 for a list of pseudo-instructions and what real instruction they are converted into.
Single-Cycle CPU
Formula: Come up with a formula for the time taken in terms of the array size ($n$ words) assuming this is running on a single-cycle RISC-V CPU operating at 6MHz (i.e., Homework 7A’s processor).
Caution!
All the “formula for the time taken” questions are basically accounting. You need to identify the total number of clock cycles required for the given code and combine it with the clock frequency to determine the total time.
It may help to start small: identify the clock cycles needed for each individual line of code, then how to combine them together for the entire piece of code.
Specific Instance: How long will it take if $n$ is 100?
Multi-Cycle CPU
Recall the multi-cycle model’s state machine:
Formula: Come up with a formula for the time taken in terms of the array size ($n$ words) assuming this is running on this multi-cycle RISC-V CPU operating at 24MHz?
State Machine
The individual instruction in question, like addi, determines the path through the state machine. Instructions are always “fetched” first and the remaining steps depend on the instruction (often the format of the instruction).
Much like the state machines we covered earlier in the semester, each “state” is one clock cycle.
Specific Instance: How long will it take if $n$ is 100?
5-stage Pipeline

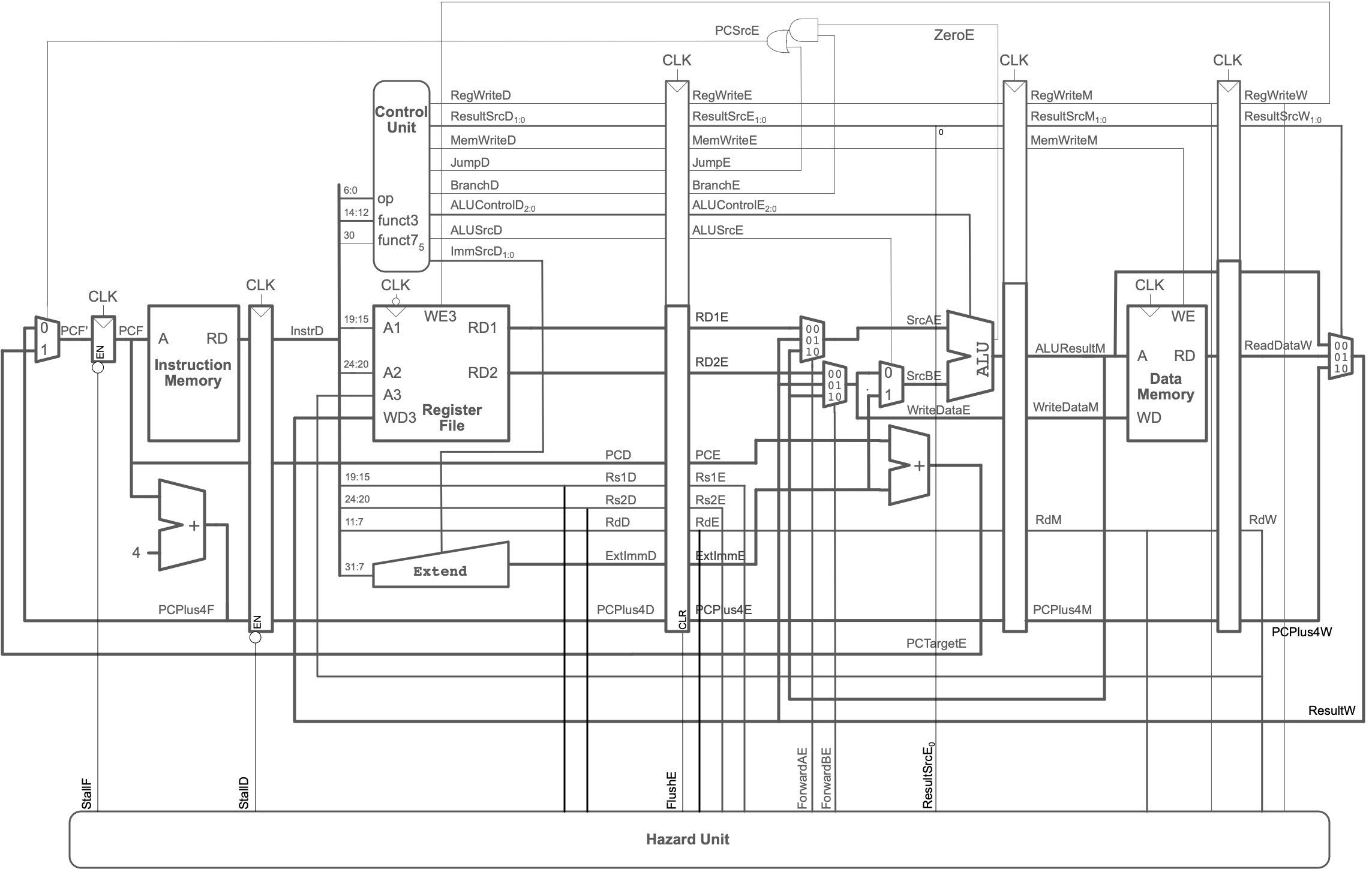

One of the variations of the RISC-V 5-stage pipeline supports data hazards via forwarding and/or stalls:
Explain what is meant by a “Data Hazard” and how this CPU design resolves them (forwarding and stalls and and example of when each is needed).
What data hazards exist in this program and how can each be resolved (forwarding? Or stalls? How many stalls?)?
Formula: Come up with an approximate formula for the time taken in terms of the array size ($n$ words) assuming this is running on this 5-stage pipeline RISC-V CPU (support for data hazards via forwarding and stalls) operating at 24MHz (Assume it has a perfect branch predictor — there are no control hazards, but account for the data hazards)?
Specific Instance: How long will it take if $n$ is 100?
More Complex Execution
Assume instead you were asked to analyze this updated version of the code:
mv t0, a0 # t0 = start
add t1, a1, a1 # t1 = 2x a1
add t1, t1, t1 # t1 = 4x a1 (sll a1, a1, 2 would also work)
add t1, a0, t1 # t1 = end (inclusive)
# use first value as min and max
lw a0, 0(t0) # Init min
mv a1, a0 # Init max
mv a2, zero # Init sum
loop:
lw t2, 0(t0)
bge t2, a0, updateSum
mv a0, t2 # Update min
updateSum:
add a2, a2, t2
addi t0, t0, 4 # Move to next
blt t0, t1, loop
Could the approach(es) you’ve taken so far always give an exact answer without additional information (FYI: the answer is “no”)? If not, explain how you could provide an upper and lower bound on the execution time.
Summary
Compare and contrast the micro architectures. Does it seem reasonable for the multi-cycle and pipelined implementations to have a higher clock rates than single-cycle implementations (higher in general, not necessarily the exact differences shown in the examples)? In general, how would you expect a pipelined implementation’s performance to compare to the single-cycle version?
